ARCCAPTAIN ARC200 Dual Voltage Easy To Use Stick Welder

Translation missing: en.products.product.price.regular_price $119.99
Translation missing: en.products.product.price.sale_price $119.99 Translation missing: en.products.product.price.regular_price $159.99
Save 25%
The ARCCAPTAIN ARC200 is an integrated IGBT Inverter, 200 Amps Synergic Stick Welding Machine, which supports Dual Voltage 120v/230v. It has two welding modes, including lift tig and MMA welding. The ARCCAPTAIN ARC200's Synergic function can help you weld easier.
payment icon
  • Estimated Delivery:Jan 01 - Jan 05

    • Free Fast Shipping
    • Experience peace of mind with our trusted logistics services.

Join our FB Group ! Connect, share, and grow with like-minded Welders!

Description

The ARC200 is an integrated IGBT Inverter, 200 Amps 110/220V Synergic easy to use ARC welder, which supports dual voltage and lift TIG functions. It has two welding modes, including lift tig and MMA welding. The Synergic control function can help you use the ARC welder easier. What’s more, the welding machine also ensures safety and reliability.


ARC200 support WP-17V 35-50 style tig torch.

Features
  • SYNERGIC CONTROL
  • Lift tig and MMA welding
  • IGBT INVERTER TECHNOLOGY
  • Portable and Lightweight: The mini-arc welder only weighs 11.73 lbs, easy to carry with a handle or shoulder strap(included), very suitable for outdoor maintenance, farm, road equipment, and home DIY.
  • VRD, over current/ over voltage/ over current/ overload/ overheating protection function

Synergic control is a key feature of our welding machine ARC200, making it a great choice for both professionals and beginners. The automatic matching of recommended current and voltage after the diameter of the welding electronic is selected means that even those with little experience can get to grips with the welding process quickly and easily.

The 2-in-1 welder ARC200 offers two welding modes, allowing you to tackle a wide range of welding projects. The adjustable hot start and arc force make it easy to strike an arc, while the automatic anti-stick function prevents electrode sticking in the puddle. This makes it suitable for welding stainless steel, mild steel and other metal materials, as well as lift tig welding of aluminum (TIG Torch not included).

The stick welding machine is built with advanced technology, including a built-in MCU control system and IGBT inverter technology. This ensures continuous arcing stability, good flow, less spatter and immediate response to any changes. It also has the ability to automatically save last welding parameters for quick and easy start-up of the next welding project.

Our revolutionary LED display provides you with accurate data display that is easy to read, even with a helmet on. The mini-arc welder weighs just 11.73 lbs, making it easy to carry around with the included handle or shoulder strap. This makes it perfect for outdoor maintenance, farm work, road equipment repair and DIY projects at home.

At ARCCAPTAIN, we take customer safety seriously. Our welder machines undergo rigorous testing in simulated harsh environments to ensure they meet the highest standards. They also have VRD, over current/ over voltage/ over current/ overload/ overheating protection functions to keep you safe while welding.


200Amp Synergic ARC Welding Machine ARC20
ARCCAPTAIN ARC200
    200Amp Synergic ARC Welding Machine ARC200

    MCU Digital Control

    • The stick welder features advance MCU digital control achieves Intelligent synergy, the recommend current and voltage can be automatically matched after selected diameter of welding electrodes, also you can adjust welding current according to welding habits and actual welding conditions. Easy to use for begginners and professinals.

    High welding efficiency

    • Hot Start: Start arc easily and efficiently during starting to welding, provide reliable and high quality arc starting.
    • Arc Force: Provide smooth and continuously arc, maintains deeper penetration and ensures stable welding arc.
    • Automatic Anti-stick: Avoid electrode sticking in the workpiece during welding, safe and convenience for beginners, ensures no sticking and smooth welds.

    Quality Accessories

    • 10 ft ground clamp with copper clip,sturdy and durable
    • Comes with 110/200V adapter,you can plug into any common power supply
    • Easy to carry with shoulder strap or handle whether working to aerial work, indoor and outdoor work etc.
    • Brush is used to remove dross.
    • 10ft Electrode Holder with strong clamping force, plenty long enough,convinience to use

    200 Amps Synergic ARC Welding Machine Test

    How to Connecting MMA electrode holder

    1. Connect the MMA electrode holder to the (+) connector on the power source.
    2. Connect the earth return cable to the (-) connector on the power source.
    3. Ensure the earth return clamp is secured tightly to the work piece or work surface.
    4. Ensure that the clamp's contact surface is as large as possible.


      Specifications

      Specifications

      Input Voltage 110/220V
      Input Power 110V(6KVA)/220V(9.4KVA)
      Current Range 110V(20-200A)/220V(20-200A)
      No-load Voltage 78V
      Rated Duty Cycle 60%
      Electrode Diameter Ø1.6-5mm
      Effciency(%) 85
      Protection Degree IP21S
      Insulation Grade H
      Machine Net Weight 7.94 lbs
      Package Size 13.78×4.72×8.66 inch
      Standard ANSI/NEMA/IEC 60974-1-2019

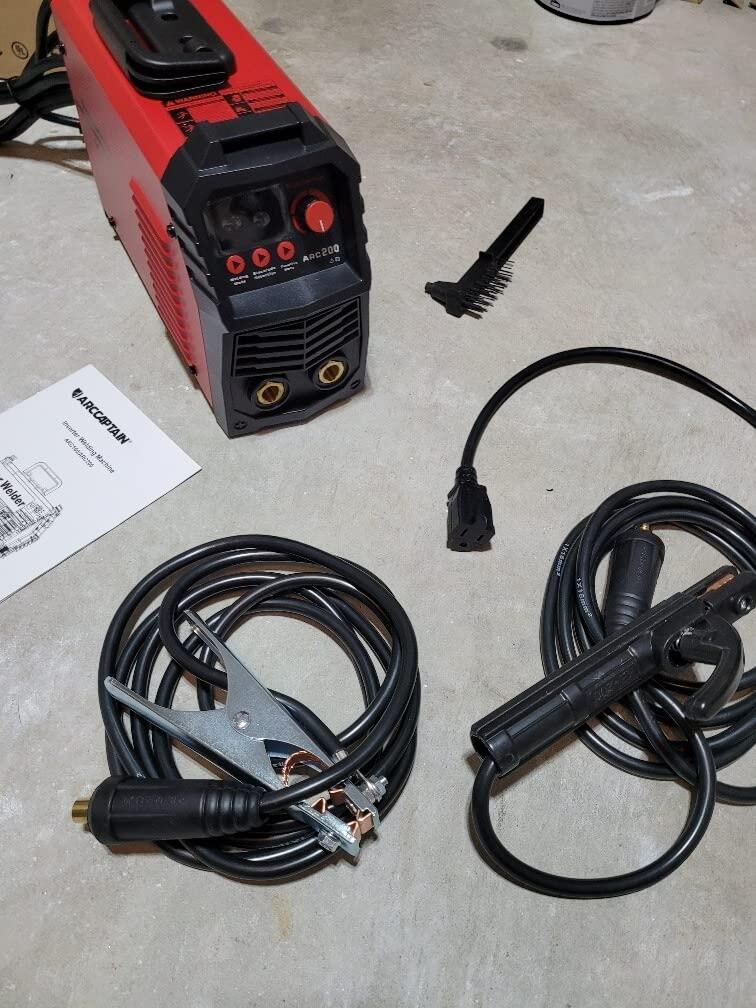

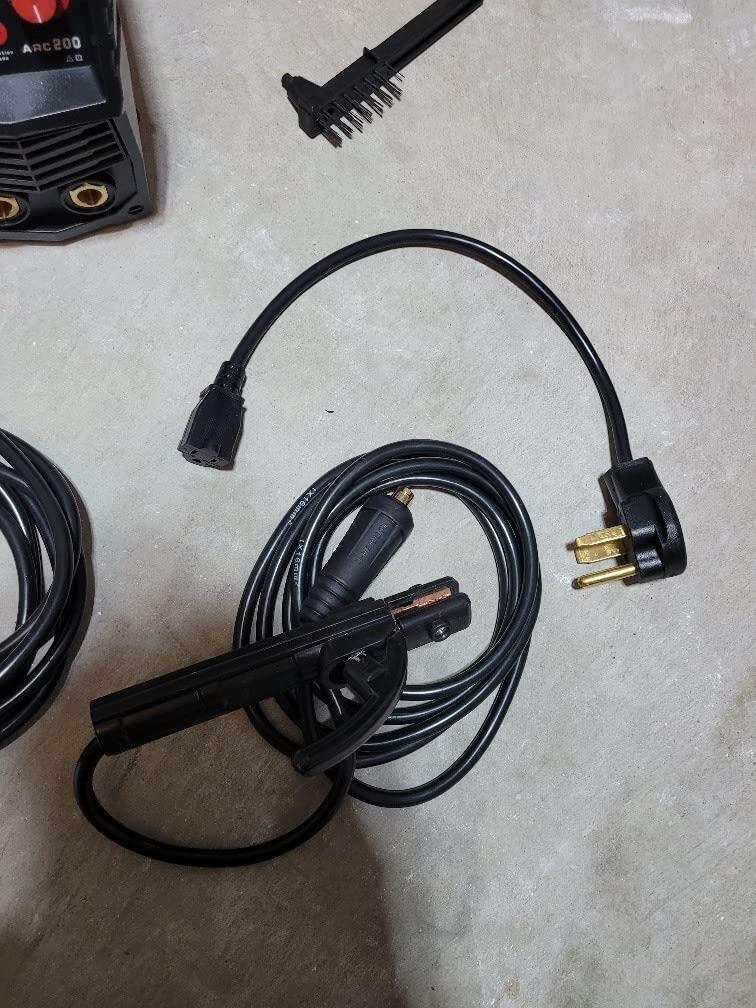

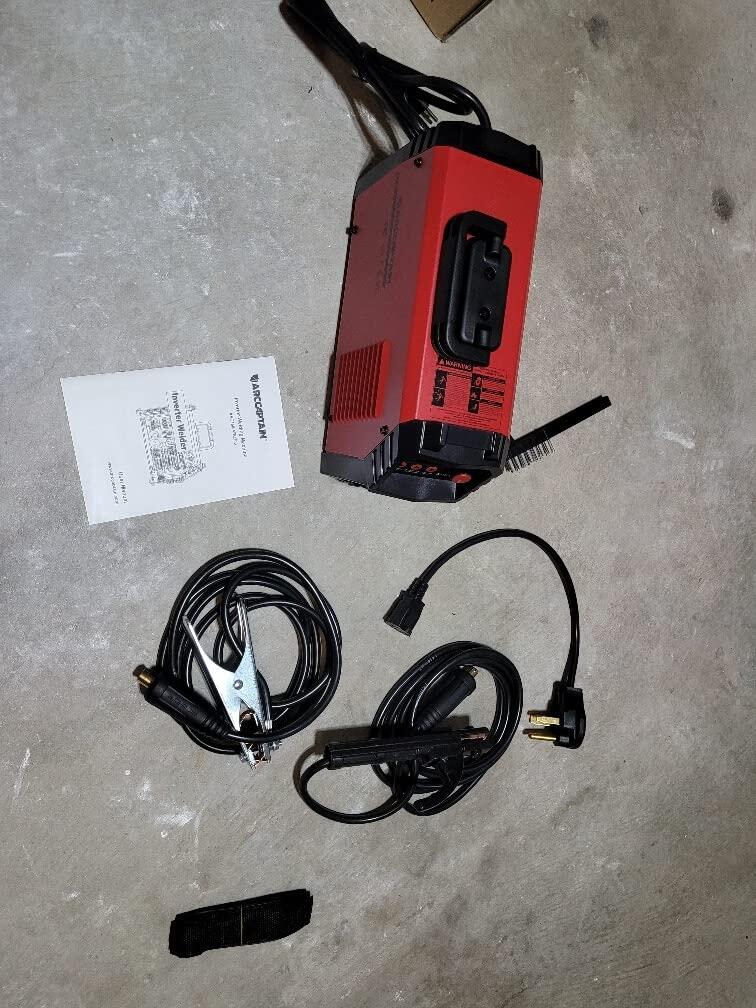

      What's In The Box
      • 1 * ARCCAPTAIN Stick Welder
      • 1 * 10 ft Electrode Holder
      • 1 * 10 ft Earth Clamp
      • 1 * 110/220V Power Adapter
      • 1 * User Manual
      • 1 * Shoulder Strap
      • 1 * Brush
