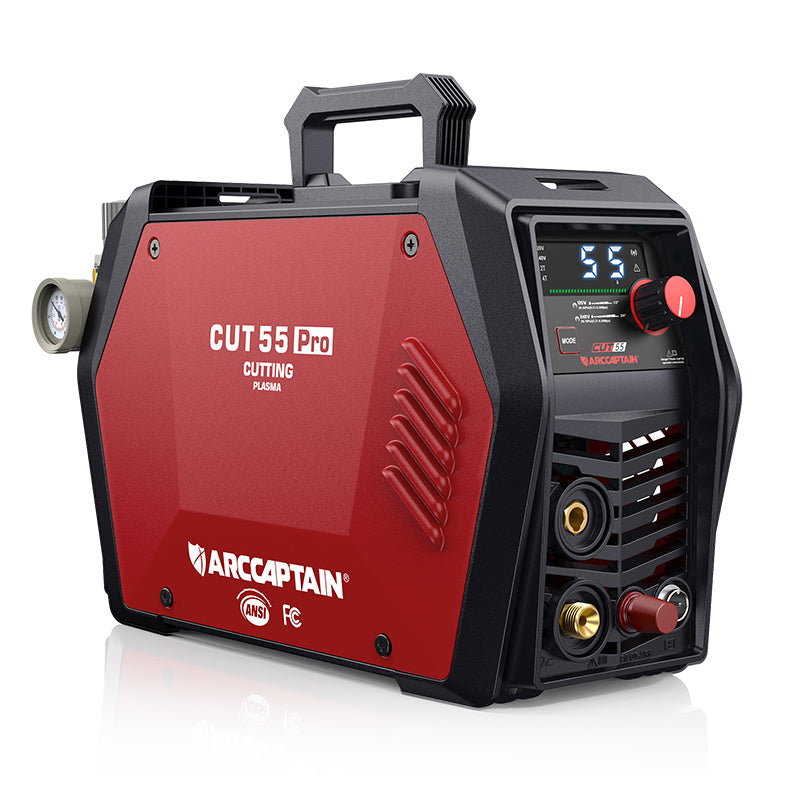

Arccaptain iControl CUT55 Pro Pilot Arc Plasma Cutter Pre-sale

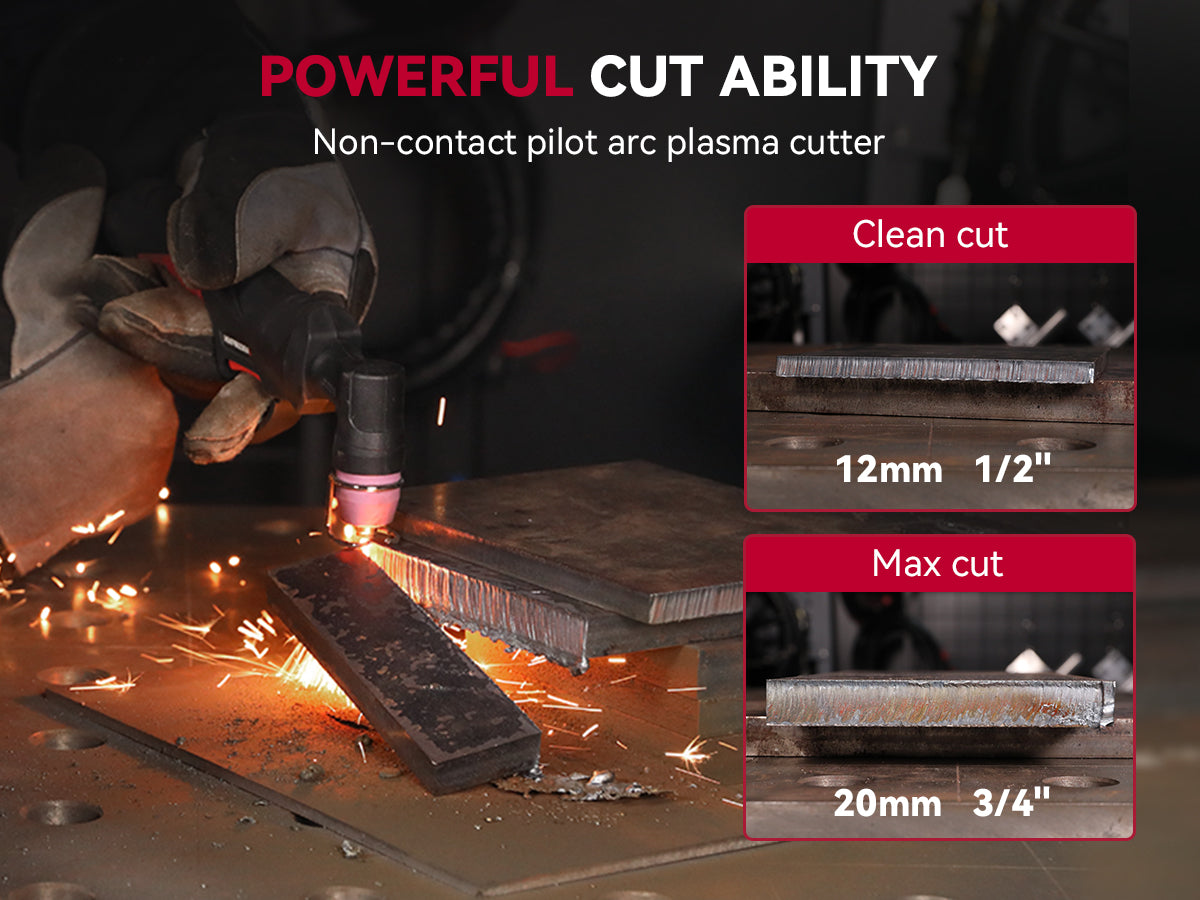

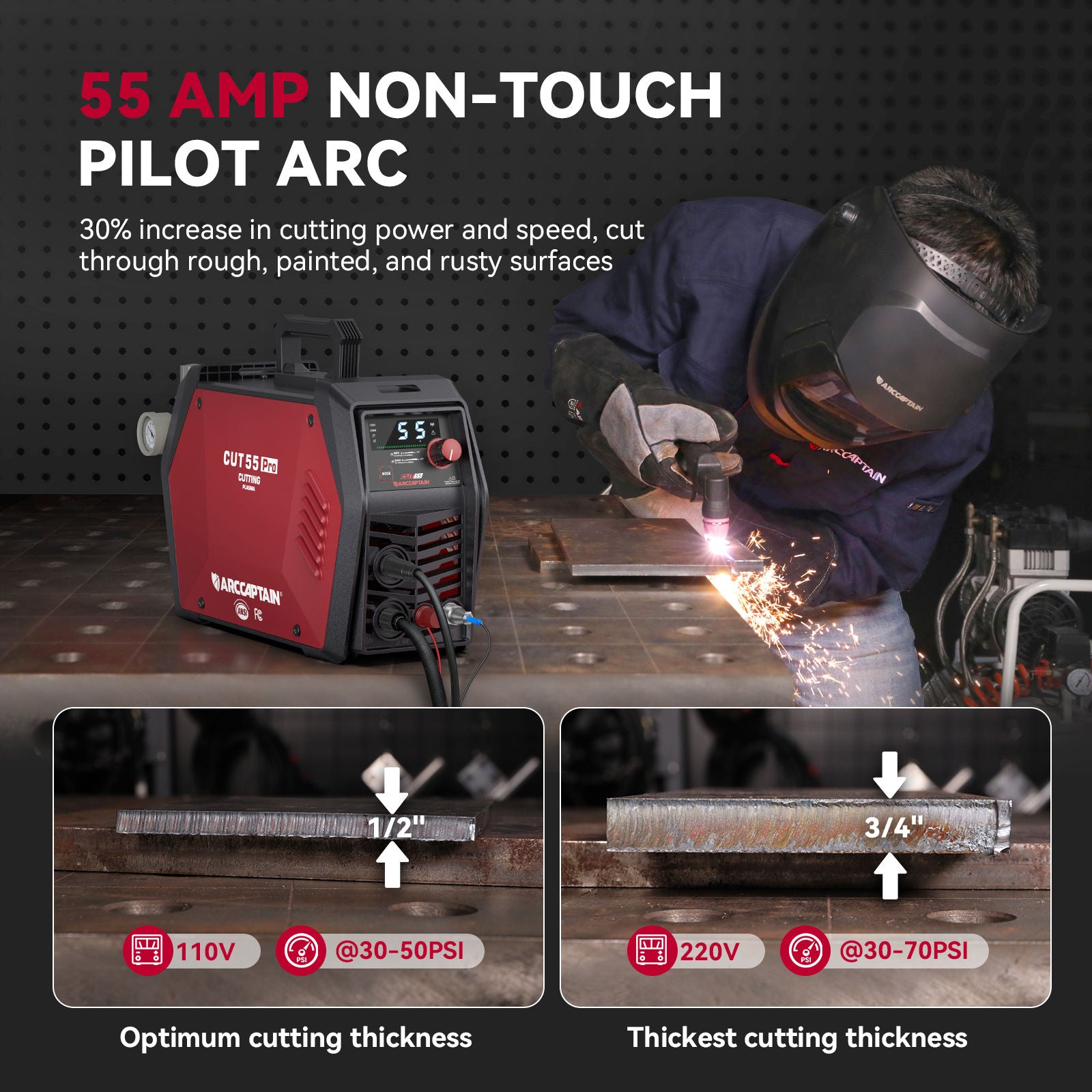

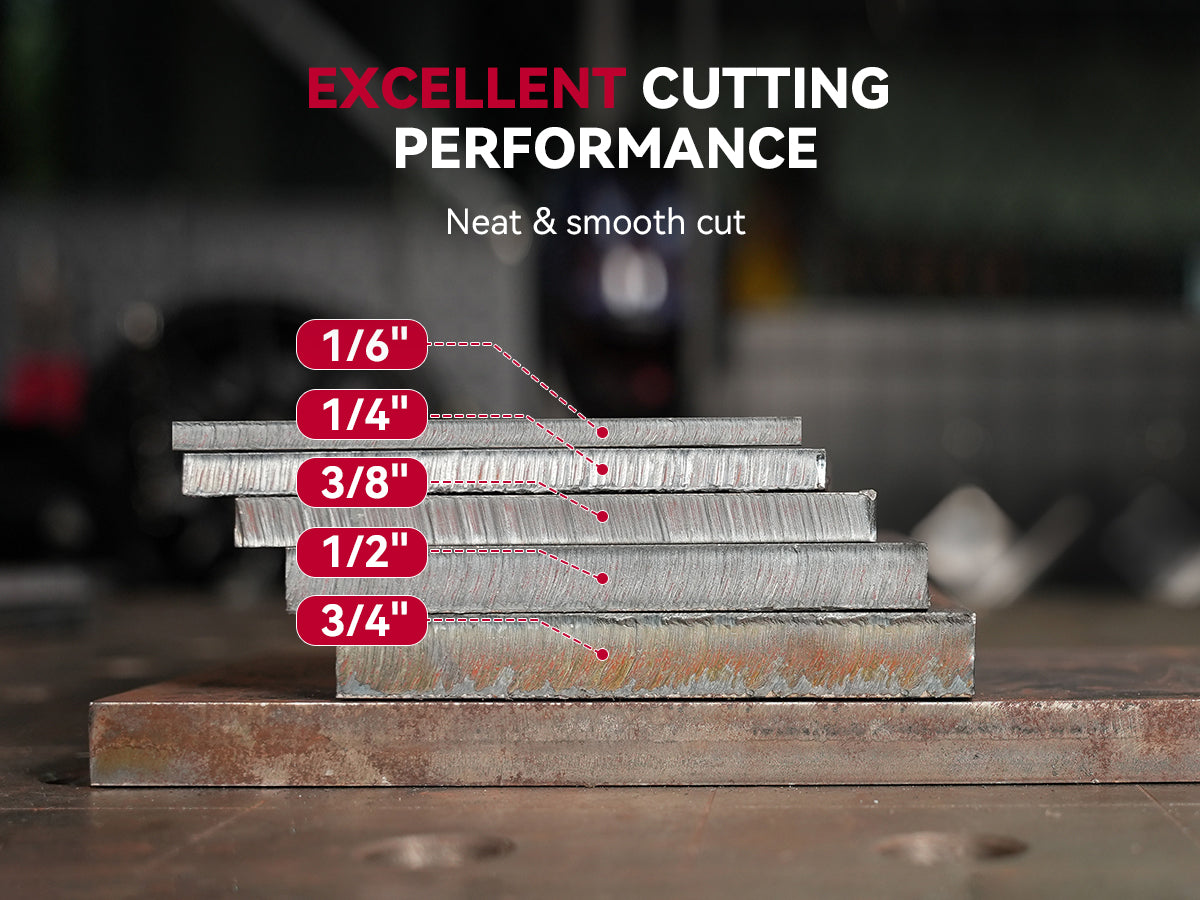

Powerful Cutting Ability: The Cut55Pro delivers impressive cutting performance, capable of making clean cuts up to 12mm in thickness and maximum cuts up to 20mm. This robust cutting capability ensures that you can handle a wide range of materials with ease and precision.

Pilot Arc Funtional: With advanced non-touch arc starting technology, the Cut55Pro allows you to start the arc without direct contact. This feature is particularly useful for cutting steel surfaces that may be dirty, rusty, or coated, ensuring consistent cutting performance without compromising on quality.

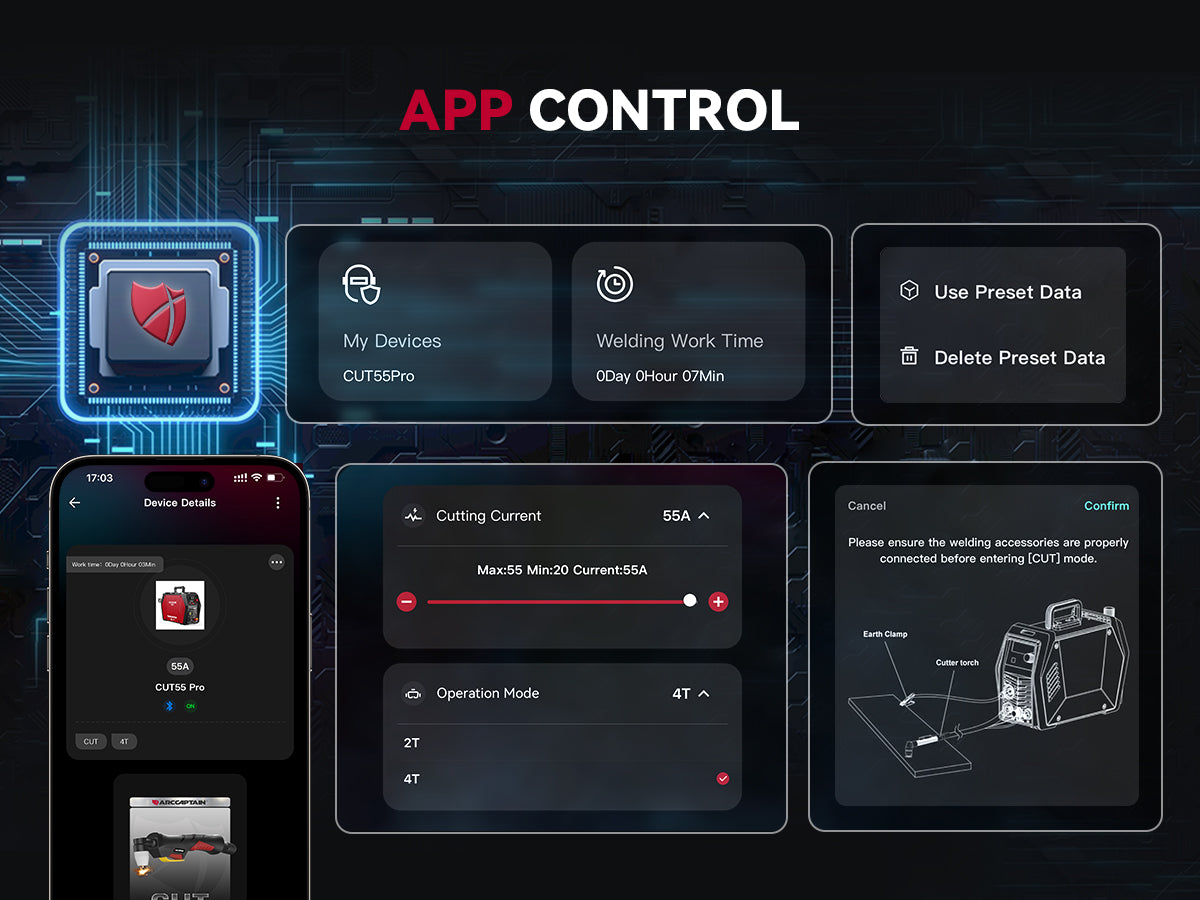

APP Connectivity: The Cut55Pro supports Bluetooth wireless connectivity to your smartphone, providing a more intuitive and convenient way to operate the machine. This feature is especially beneficial for beginners and for ongoing maintenance. Additionally, the machine supports firmware updates through the app, allowing you to easily upgrade and enhance the machine's performance and stability over time.

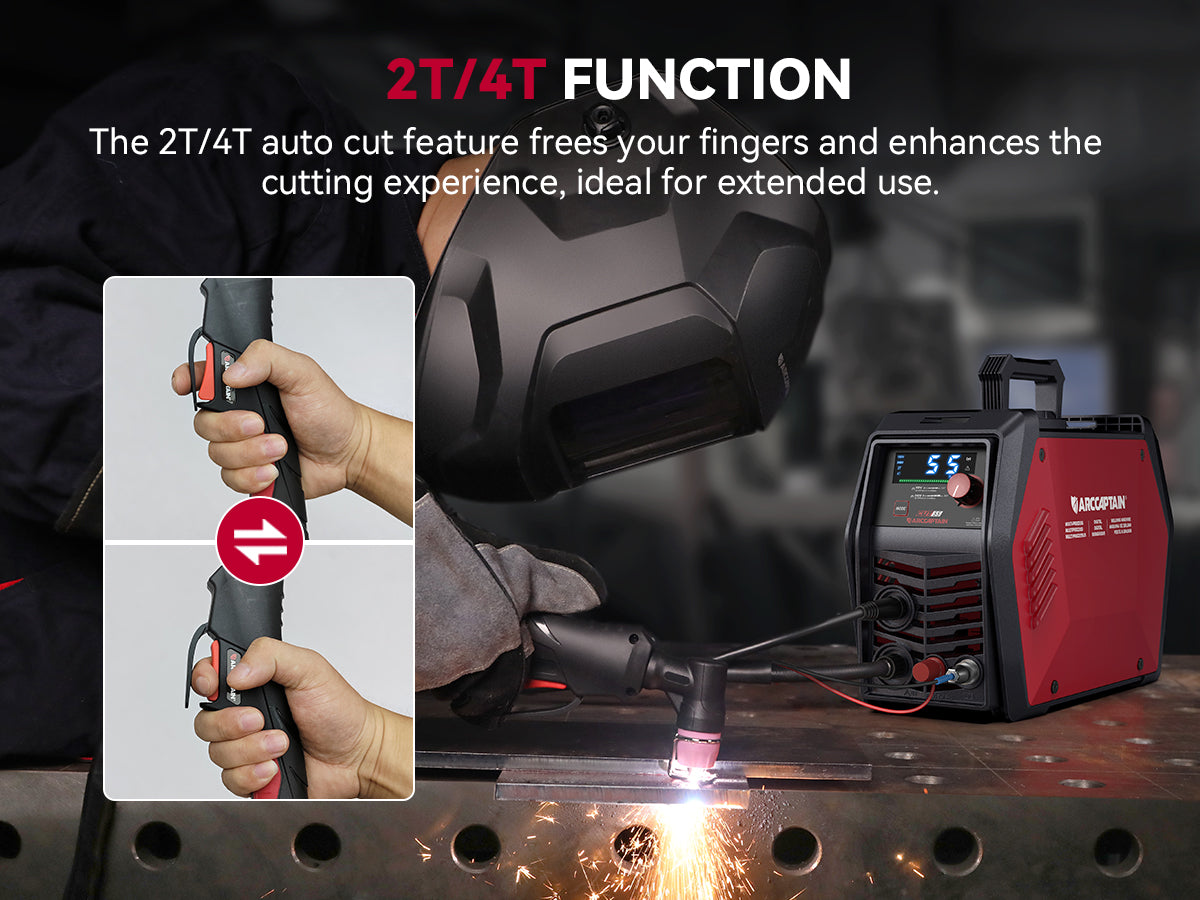

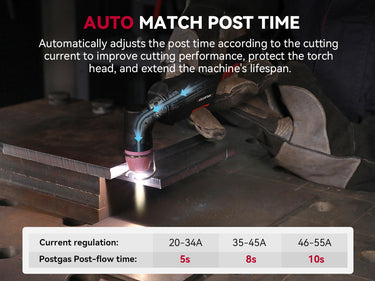

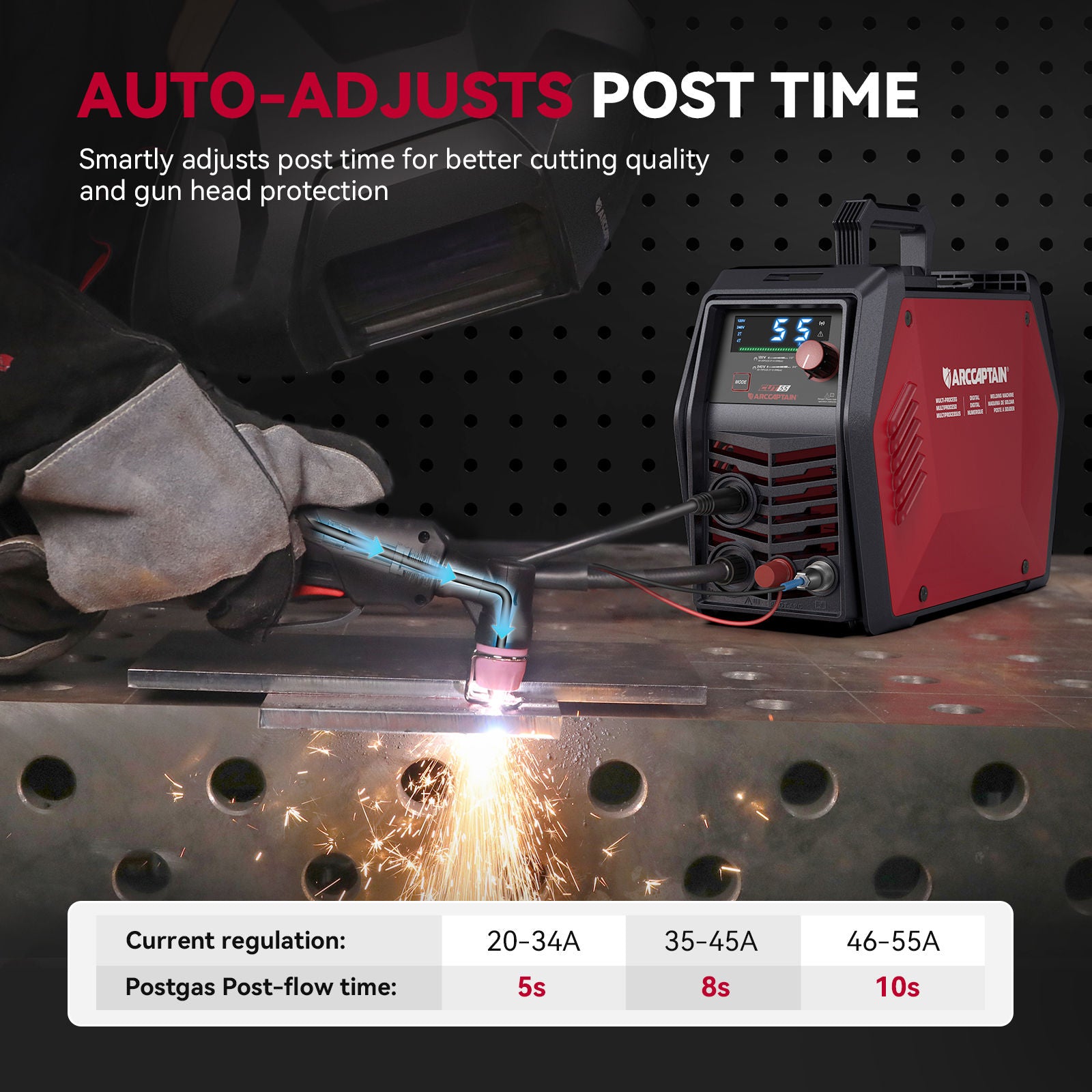

Features 2T/4T and Intelligent Post-Flow Function: The 2T mode is suitable for flexible cutting, while the 4T mode is designed to alleviate fatigue during prolonged welding operations. For cutting currents between 20-34A, the post-flow lasts for 5 seconds; for currents between 35-45A, the post-flow lasts for 8 seconds; and for currents between 46-55A, the post-flow lasts for 10 seconds.

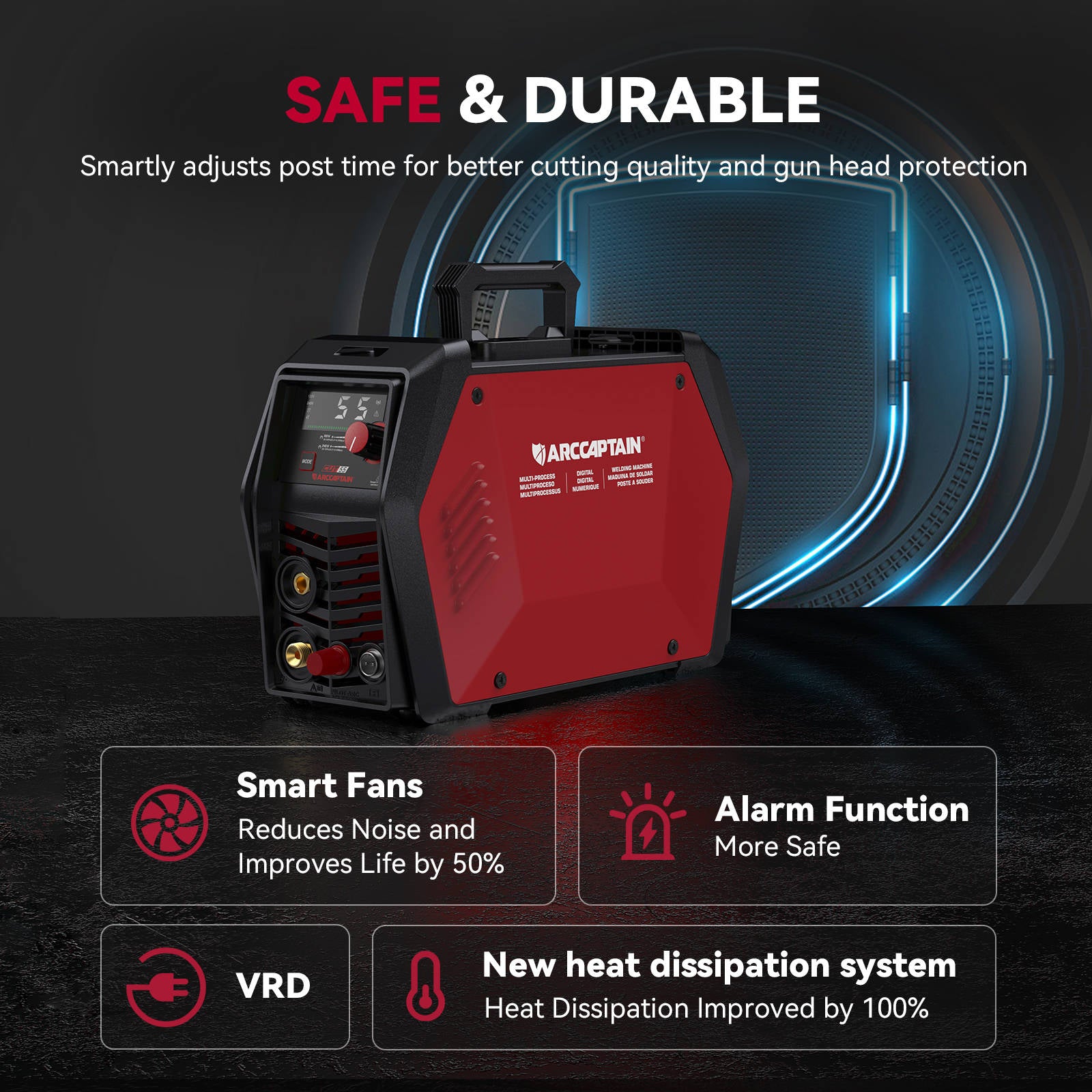

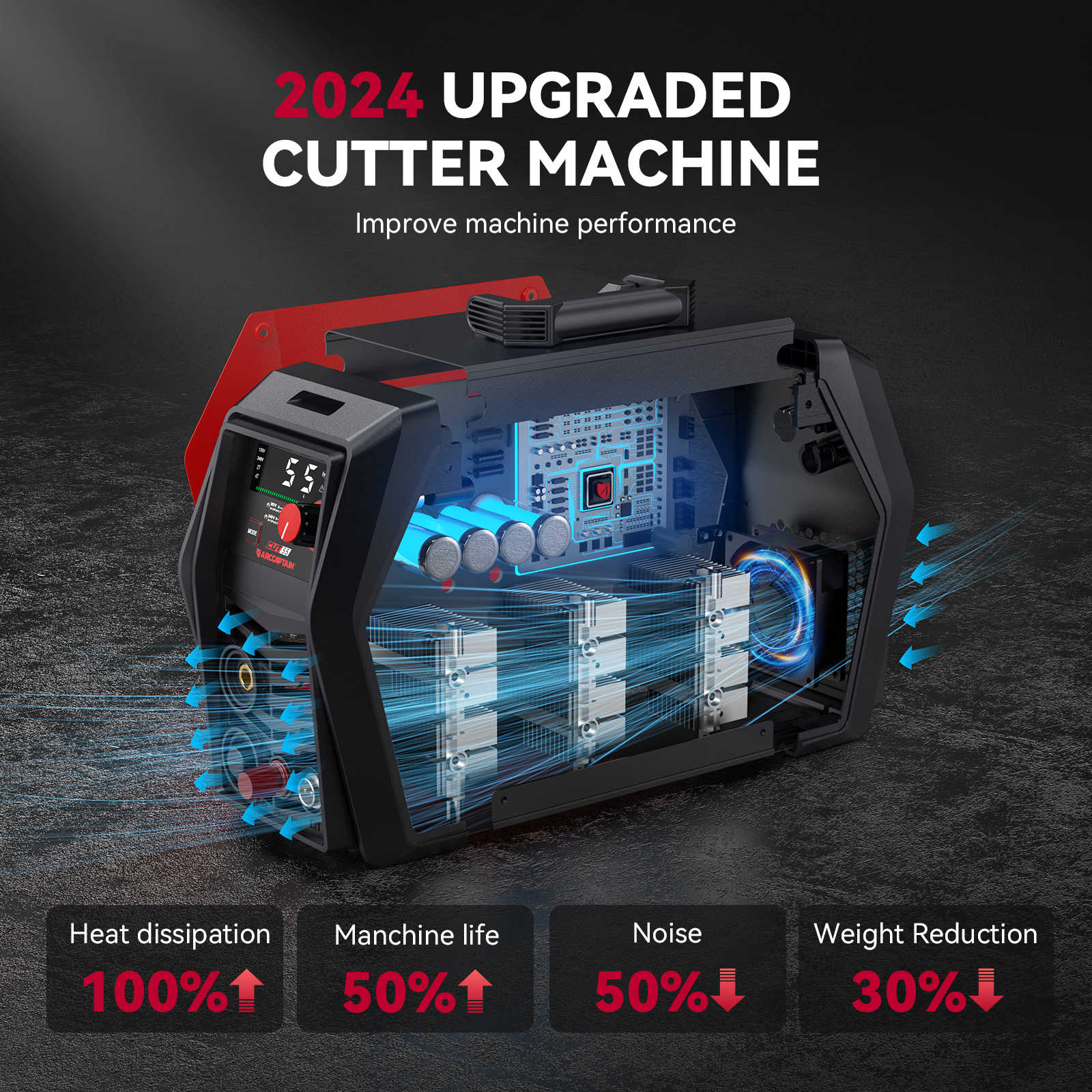

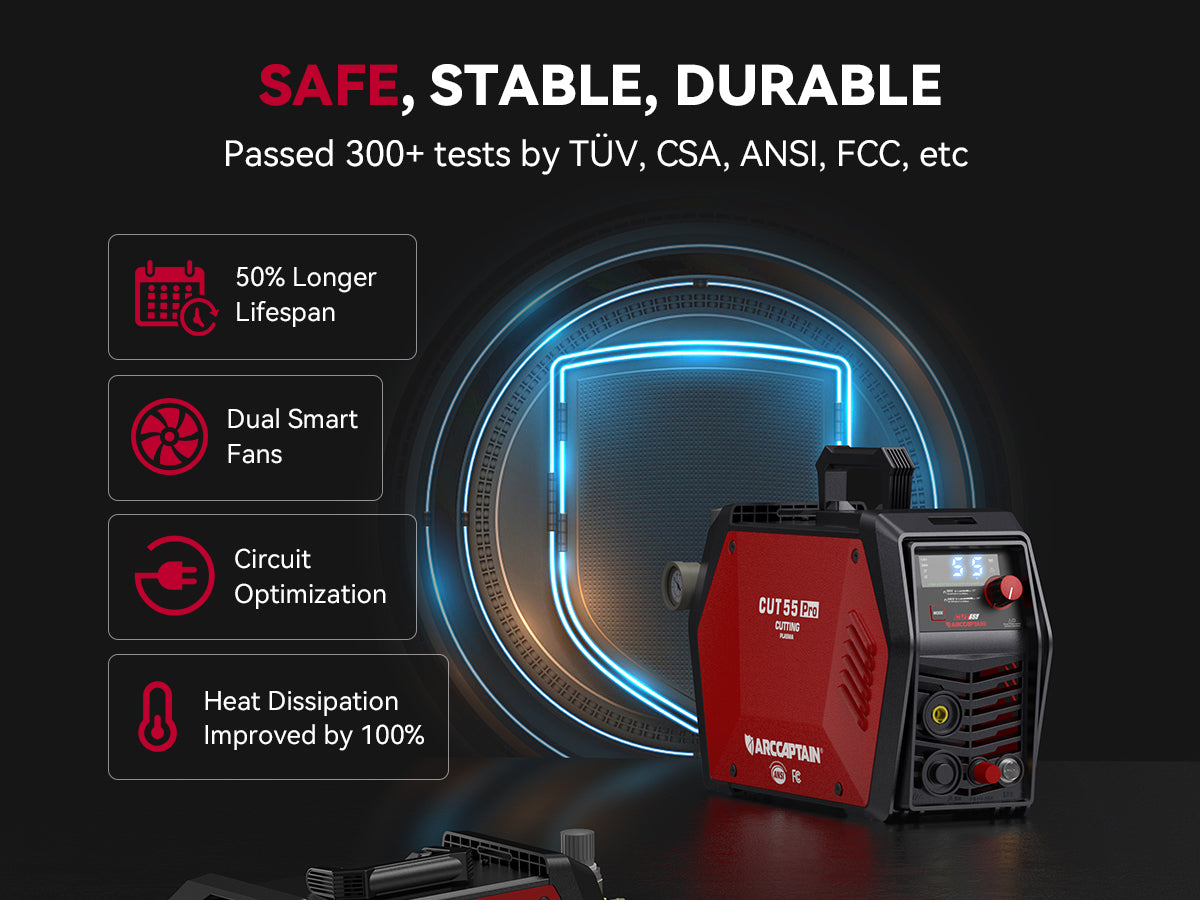

Safe and Durable Design: The Cut55Pro is built with safety and durability in mind. It features an intelligent fan and a new, highly efficient cooling system, ensuring optimal operating temperatures and extending the machine's lifespan. The triple protection design (against water, dust, and corrosion) significantly reduces the risk of failure by up to 70%, providing you with a reliable and long-lasting tool.

Technical parameters

Items	Models
	CUT55
Rated input power supply	Single-phase AC240V 50/60Hz	Single-phase AC120V 50/60Hz
Rated input capacity (kVA)	9.4	5.5
Power factor	0.7
Rated output (A/V)	55/102	35/94
Rated duty cycle (%)	60	60
No-load voltage (V)	330V
Output current range (A)	20~55	20~35
Arc ignition mode	HF NON-CONTACT
Post-flow time (s)	5
Gas pressure range (Mpa)	0.2~0.5Mpa 29~72psi
Insulation grade	H
Cooling mode	Air cooling
Enclosure ingress protection	IP21S
Efficiency (%)	85
Dimensions(L*W*H)	17.8in*9.6in*6.1in/452*244*15 mm
Weight (lb)	11.5lb/5.2kg

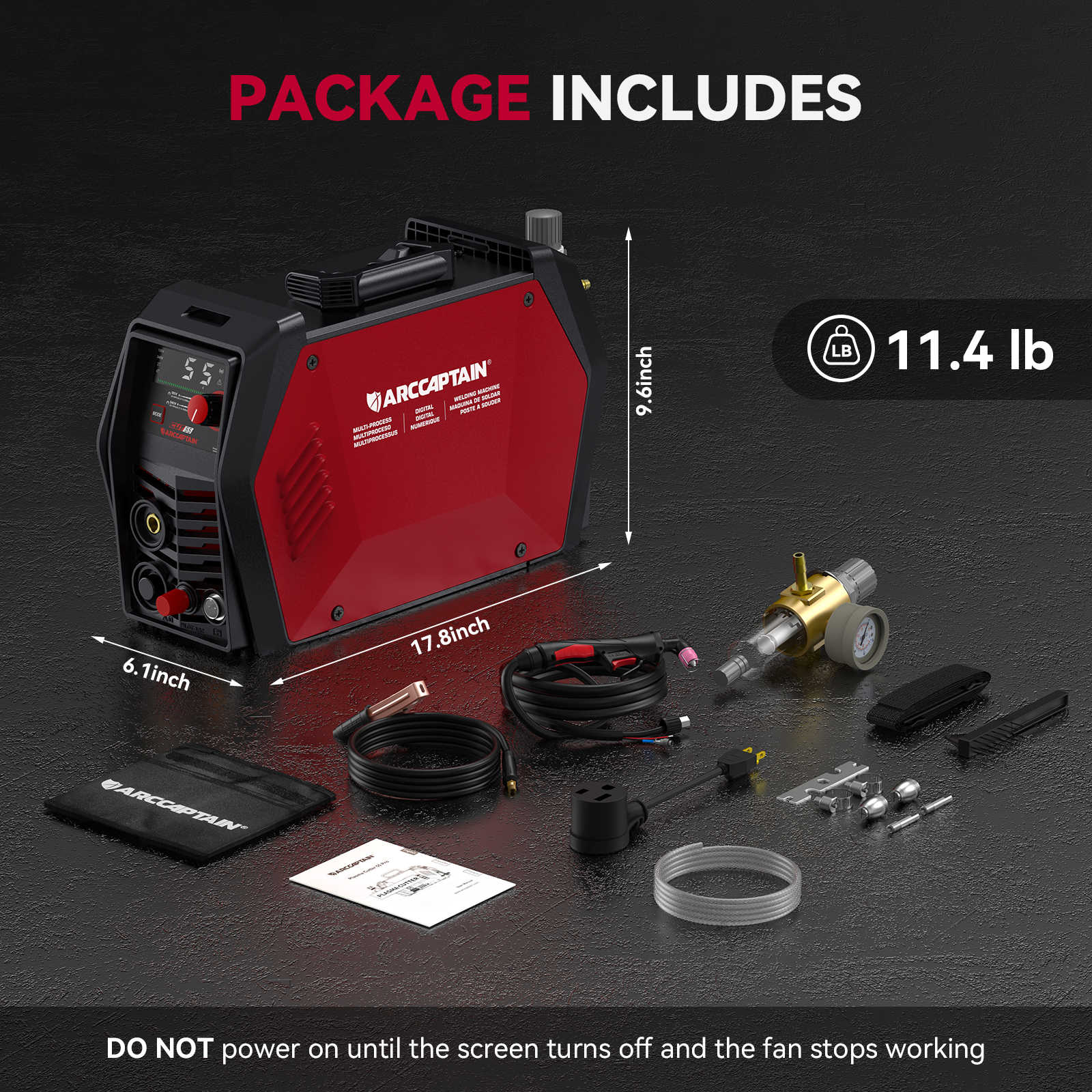

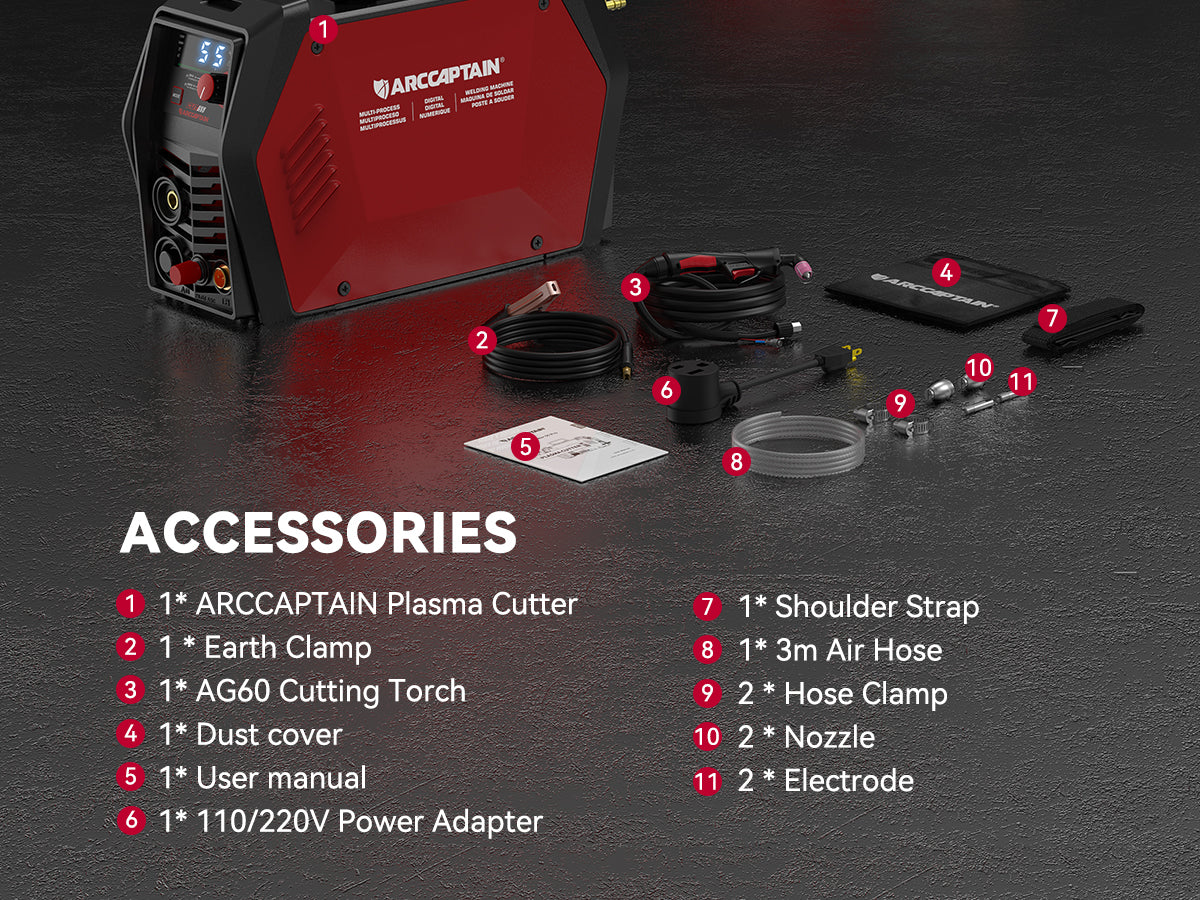

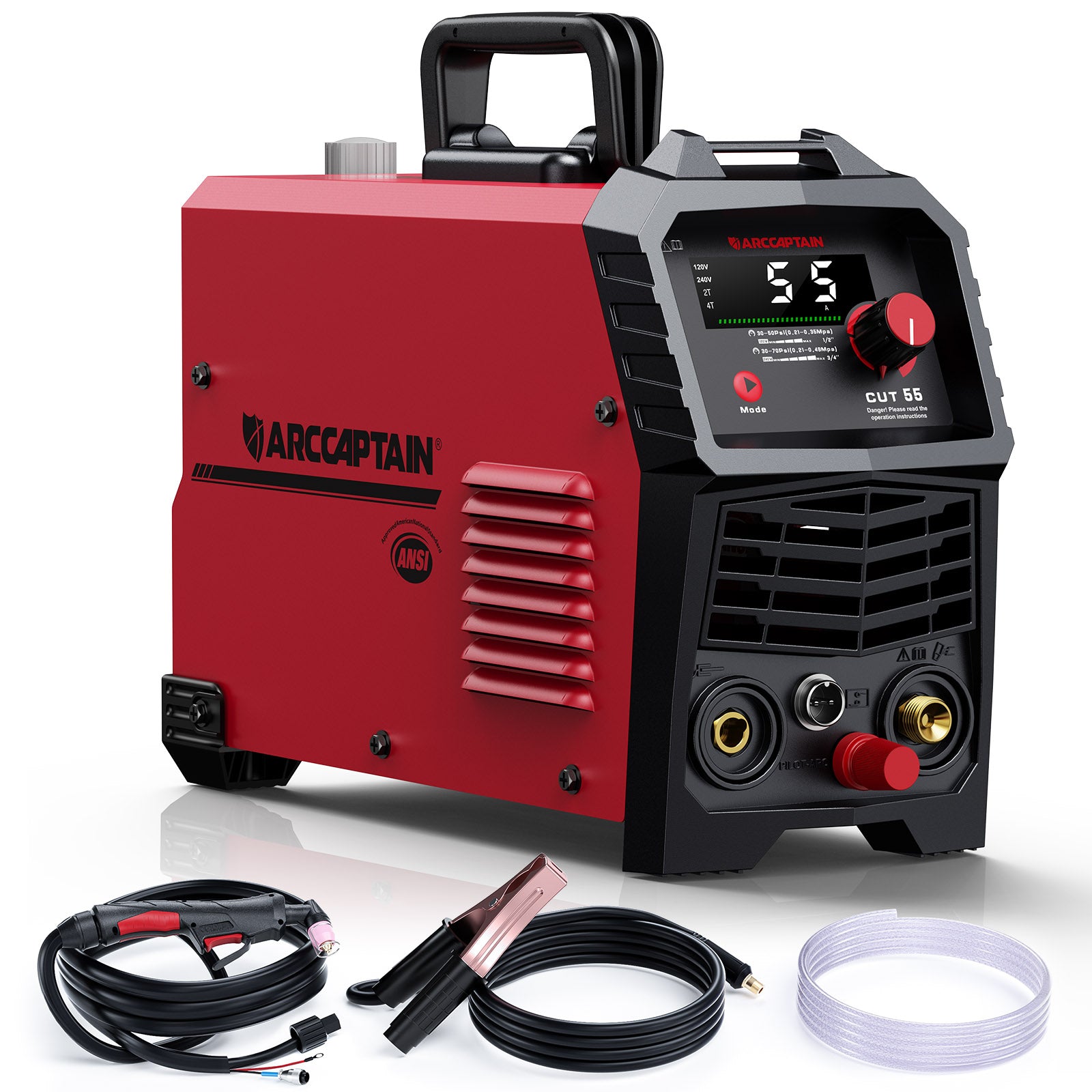

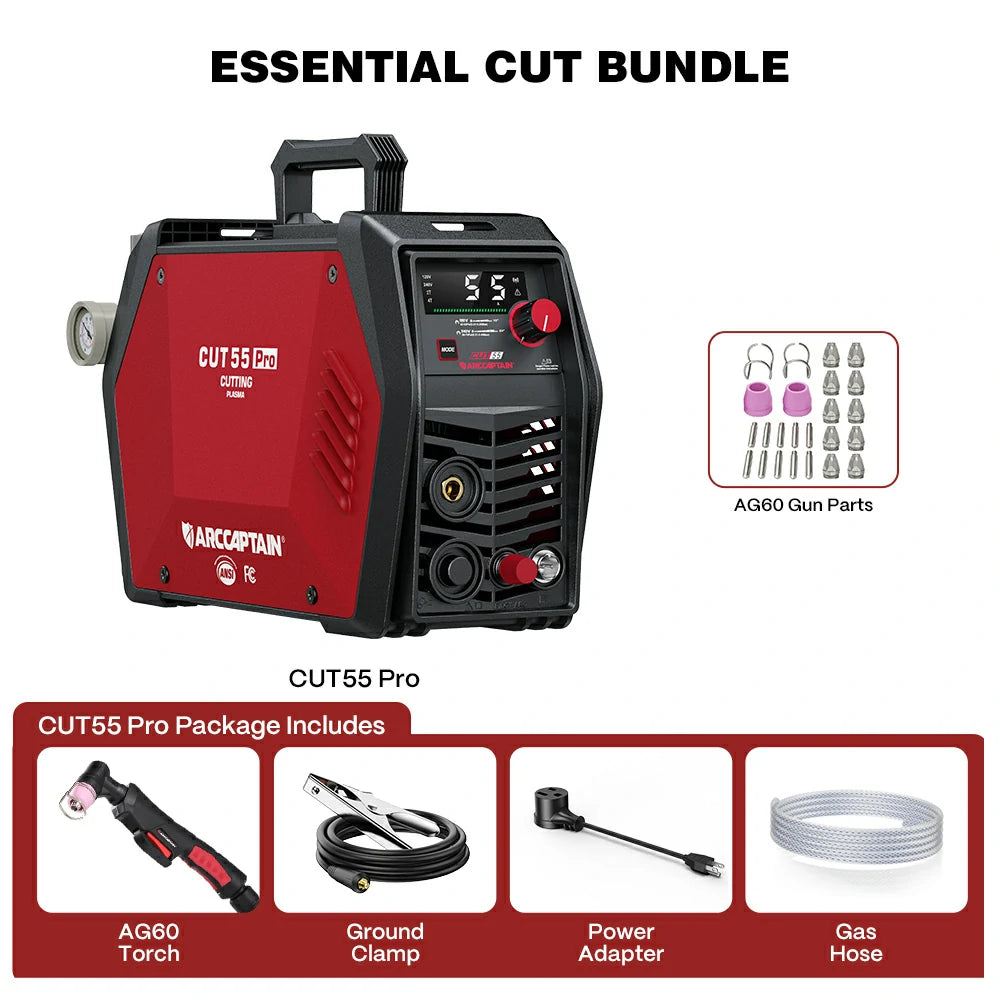

1 * CUT55 Pro Cutting Machine
1 * Air Compressor Filter Installed on the Machine
1 * Cutting Torch & Accessories (AG-60)
1 * Ground Clamp (200A-0.025in2 DKJ 10-25)
1 * Gas Hose (0.3*0.47in)
2 * Hose Clamp
1 * Adapter (240V to 120V)
1 * Strap
1 * Operator’s Manual
