Arccaptain iControl ARC205 Pro Dual Voltage Smart SYN Stick Welder Pre-sale

Technical Parameters

TECHNICAL PARAMETERS	Units	Model
		ARC165 Pro			ARC205 Pro
Rated input voltage	V	AC120V±15%  50/60HZ		AC240V±15%  50/60HZ	AC120V±15%  50/60HZ	AC240V±15%  50/60HZ
Rated input power	kVA	5		7.1	6	9.4
Welding current range（MMA)	A	20-105		20-165	20-150	20-205
	V	20.8-24.2		20.8-26.6	20.8-26.0	20.8-28.2
Welding current range（TIG)	A	20-105		20-165	20-150	20-205
	V	10.8-14.2		10.8-26.6	10.8-16.0	10.8-18.2
Hot start current range	A	0~60A
ARC force current range	A	0~100A
Rated duty cycle	-	60%
No-load voltage	V	76			85

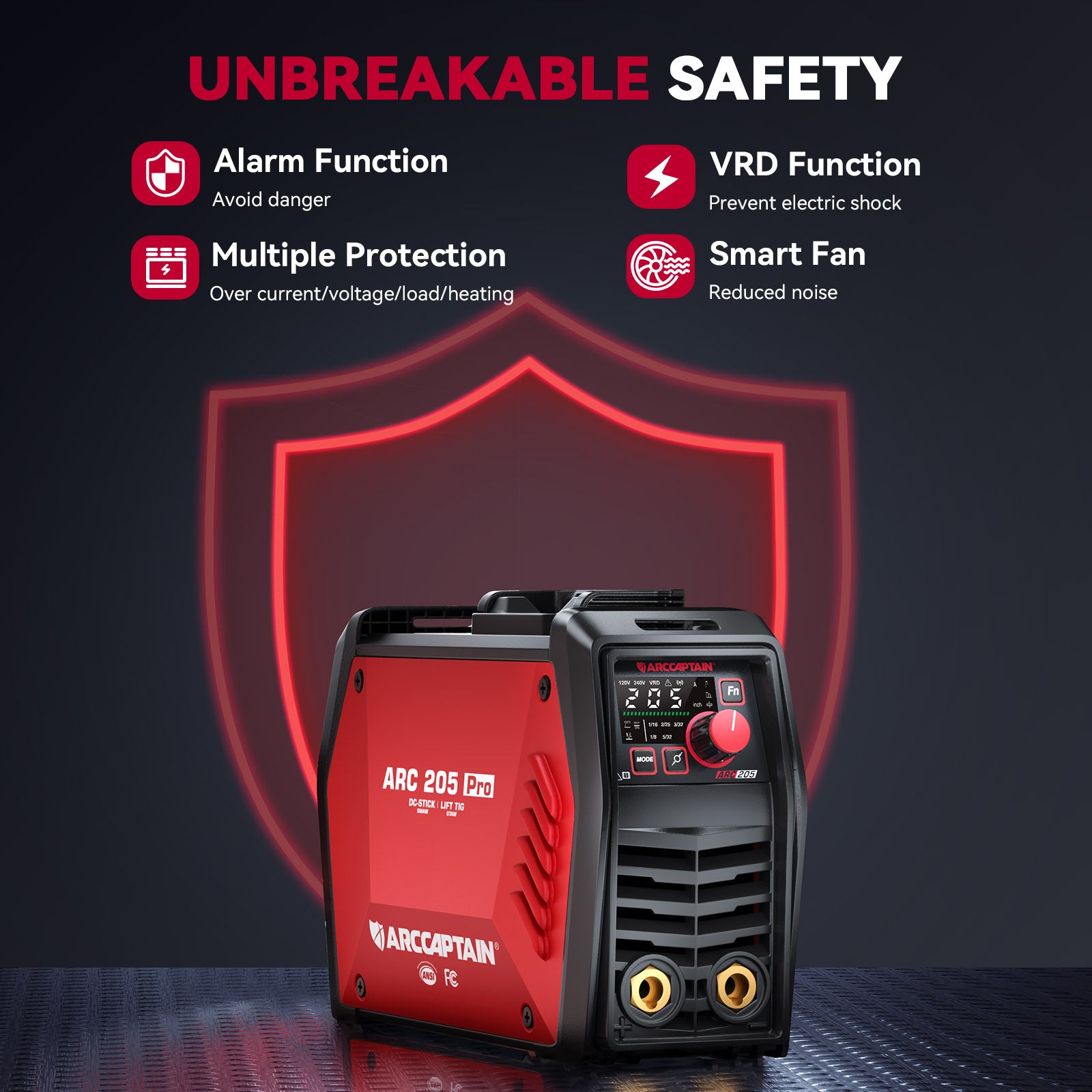

VRD voltage	V	12
Overall efficiency	-	80%
Protection grade	-	IP21S
Power factor	-	COSφ=0.7
Insulation grade	-	H

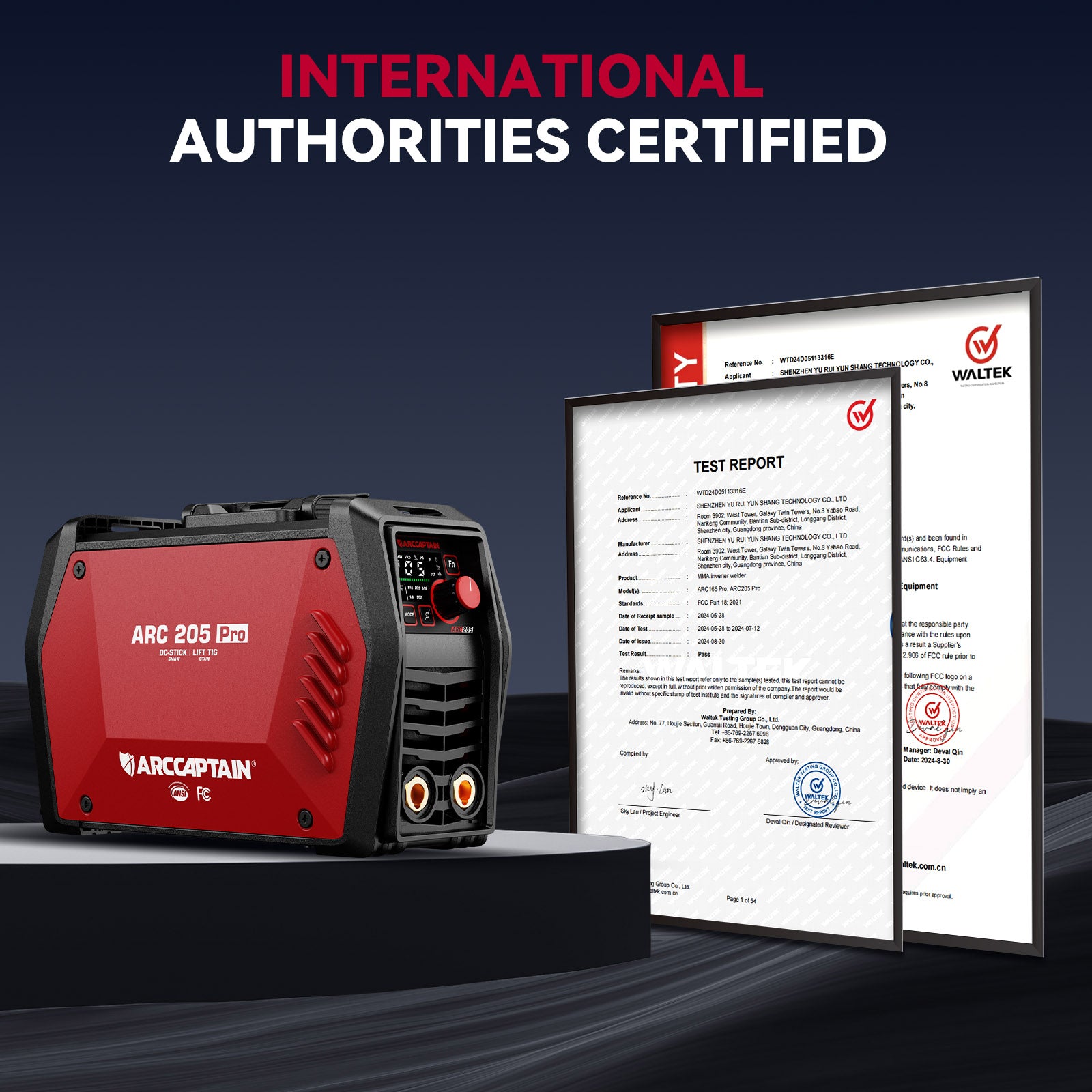

Standard	-	ANSI/NEMA/IEC 60974-1

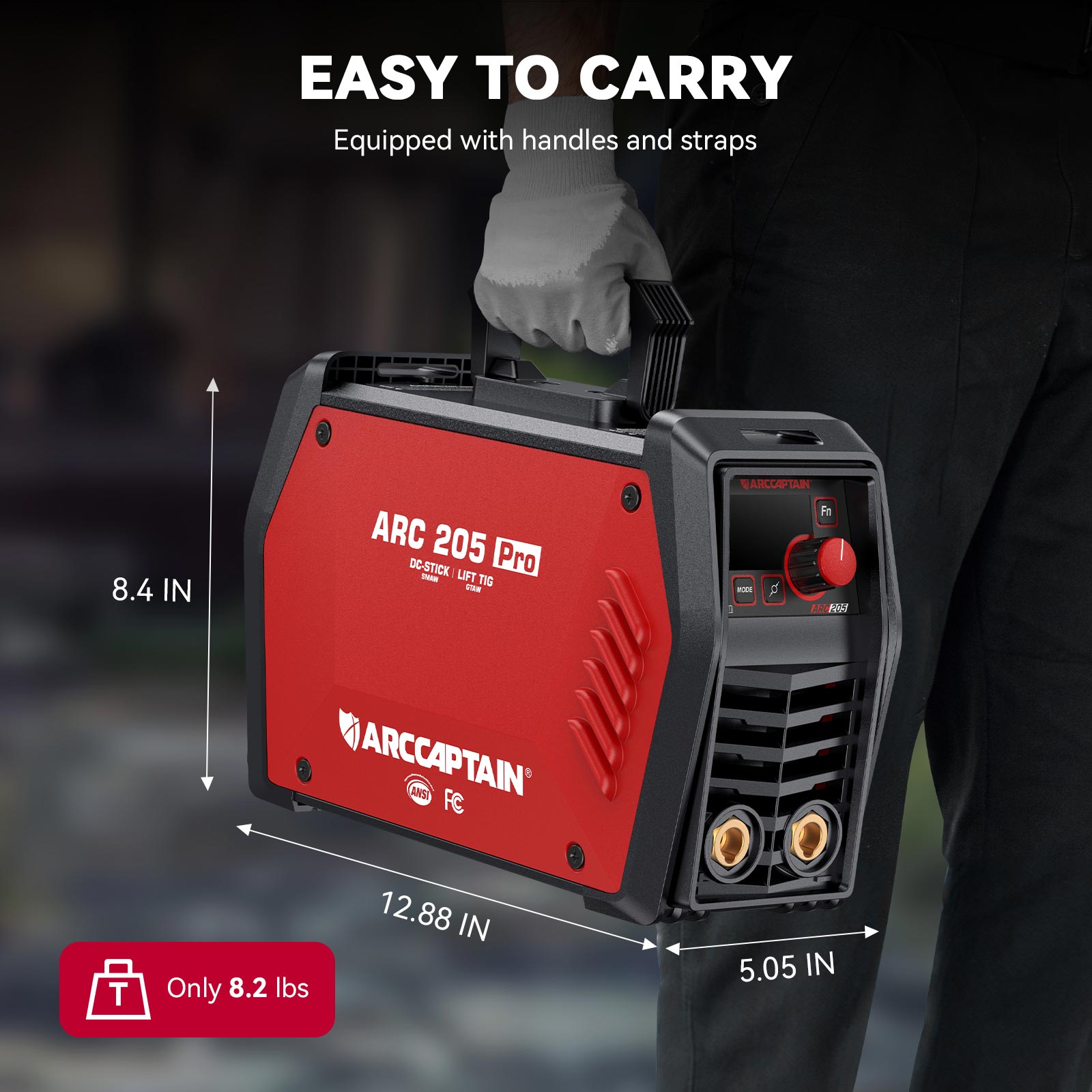

Dimensions L*W*H	Inch	12.88*5.05*8.4
	mm	327*128*213mm
Net weight	Lb	6.80			8.30
	KG	3.08			3.76
Applicable electrode	Inch/ mm	1/16"-3/25" 1.6-2.5	1/16"-1/8" 1.6-3.2		1/16"-1/8" 1.6-3.2	1/16"-5/32" 1.6-4.0

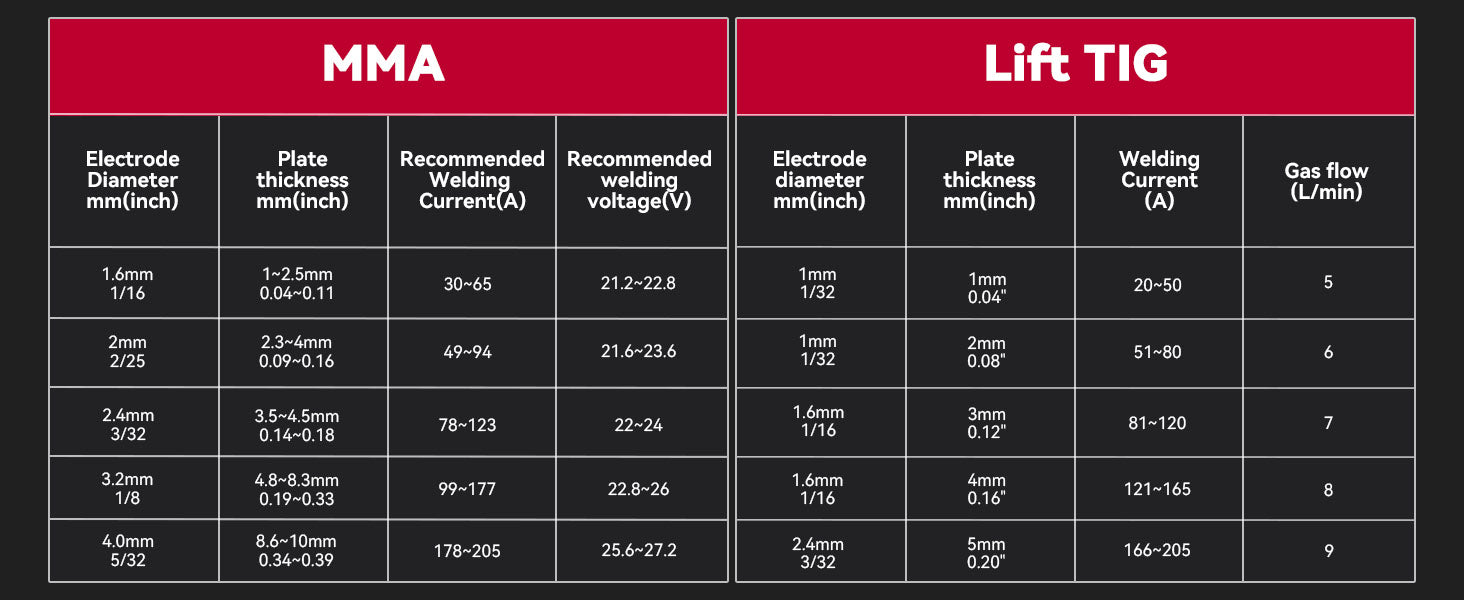

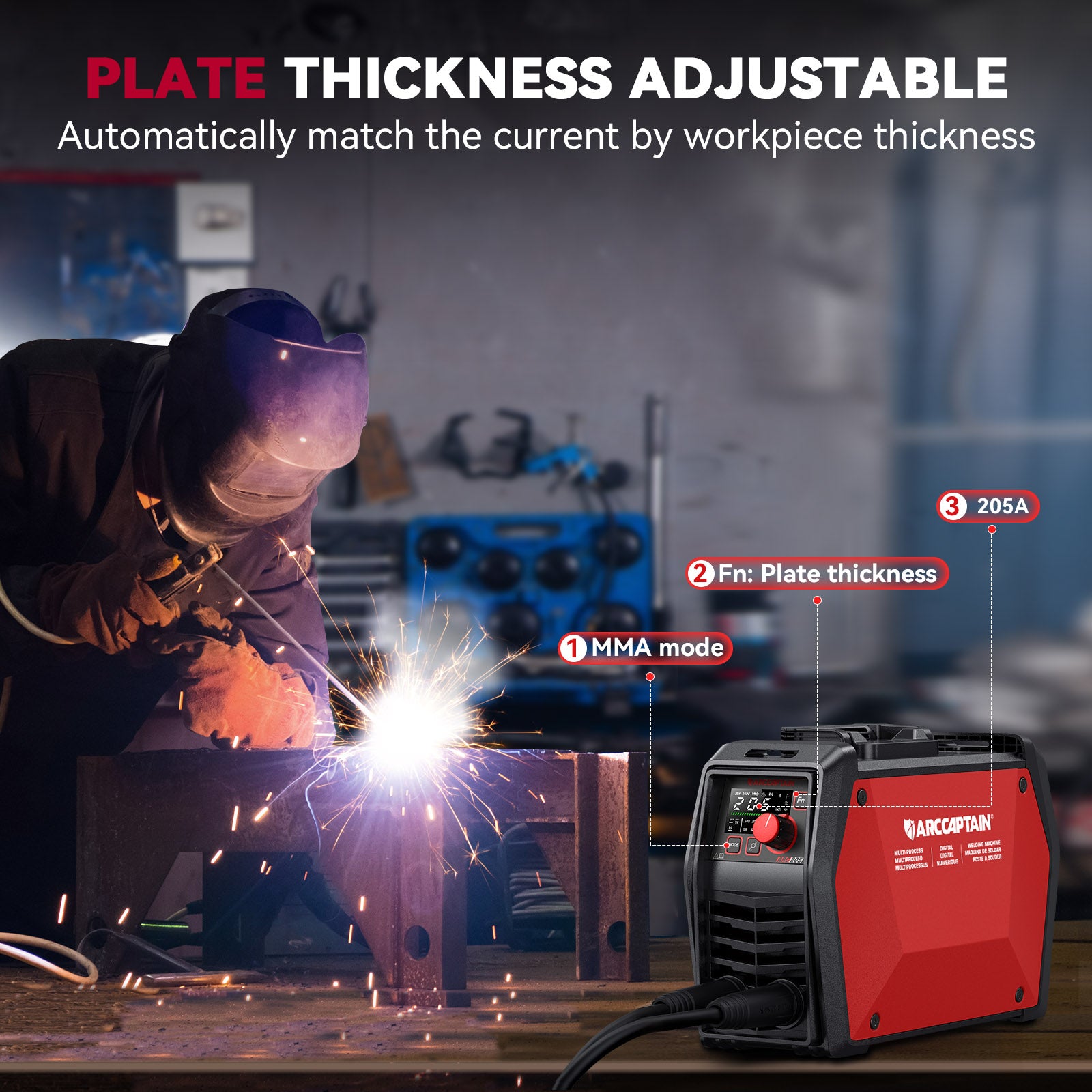

Welding Parameters Table

Electrode Diameter mm(inch)	Plate thickness mm  (inch)	Recommended Welding Current(A)	Recommended welding voltage(V)
1.6mm 1/16	1~2.5mm 0.04~0.11	30~65	21.2~22.8
2mm 2/25	2.3~4mm 0.9~0.16	49~94	21.6~23.6
2.4mm 3/32	3.5~4.5mm 0.14~0.18	78~123	22~24
3.2mm 1/8	4.8~8.3mm 0.19~0.33	99~177	22.8~26
4.0mm 5/32	8.6~10mm 0.34~0.39	178~205	25.6~27.2





LIFT TIG Welding Parameters Table

Electrode diameter mm  (inch)	Plate thickness mm  (inch)	Welding current(A)	Gas flow(L/min)
1mm 1/32	1mm 0.04”	20~50	5
1mm 1/32	2mm 0.08”	51~80	6
1.6mm 1/16	3mm 0.12”	81~120	7
1.6mm 1/16	4mm 0.16”	121~165	8
2.4mm 3/32	5mm 0.20”	166~205	9

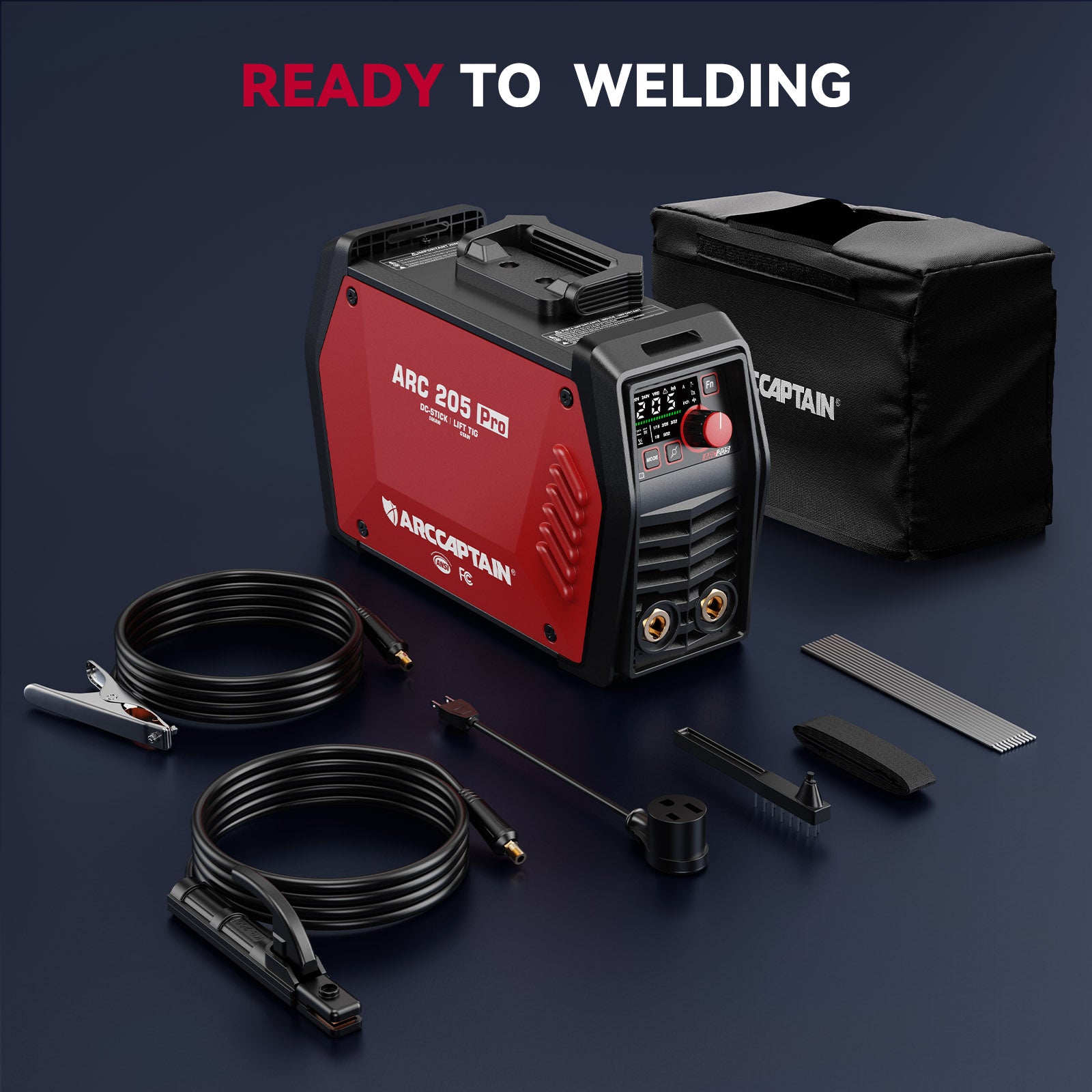

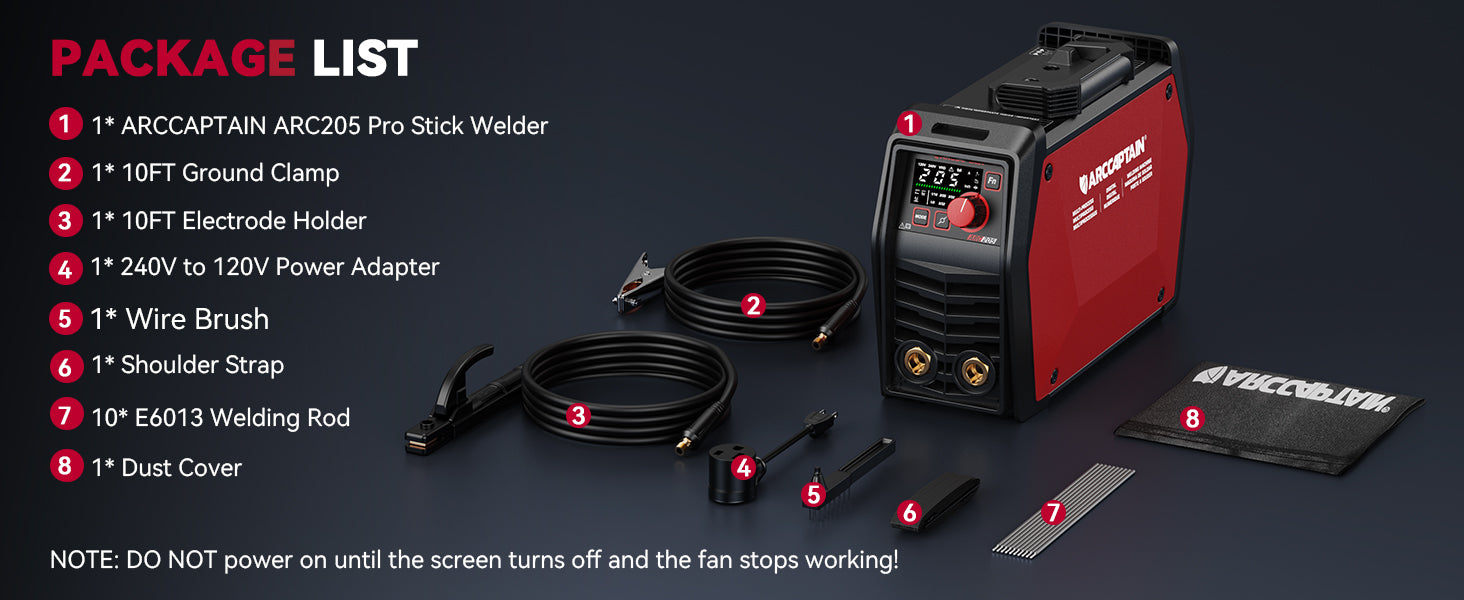

1 * Welding machine

1 * User Manual of ARC Pro

1 * Electrode Holder (10 ft)

1 * Ground Clamp (10 ft)

1 * Adapter 240V to 120V

1 * Shoulder Strap

1 * Wire Brush

1 * Welding Rod E6013
